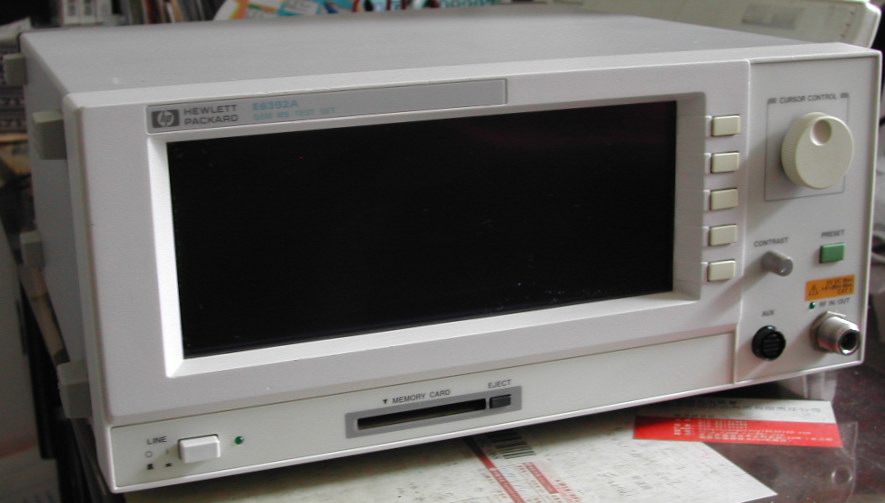

GSM手机综合测试仪 HP E6392A 惠普/安捷伦

仪器仪表 销售 出租

配置选件 OPT002

详细指标--PDF文件

RF信号发生器

• Frequency Range: 935MHz to 1880 MHz
  Frequency Resolution: 200 kHz
  Modulation: 0.3 GMSK
  Output Power: -110 dBm to -50 dBm

RF分析仪

• Frequency Range: 890 MHz to 1785 MHz
  Frequency Resolution: 1 Hz ( 100 kHz in hop mode )

Transmitter Carrier Peak Power Measurement

• Range: -20 dBm to +39 dBm
  Resolution: 0.2 dB

PowerRamp Measurement

• Range: -11 dBm to +39 dBm
  Resolution: 0.2 dB

Phase & Frequency Error Measurement

• Input Level Range: -11 dBm to +39 dBm
  Input Phase Error Range: 0 to 20°
  Frequency Error Measurement Range: ±9 kHz

直流电源

• Range: 3 Vdc to 9 Vdc
  Resolution: 0.1 V
  Maximum Current: 1 A, 2 A peak
  DC Current Measurement Range: 3 mA to 1000 mA

存储卡: 512 KB SRAM PCMCIA

RF Input/Output

• Maximum Safe Reverse Power: +41 dBm (peak)
  Impedance: 50 ohm nominal
  SWR: ≤1.5:1
  Connector: Type N, female
