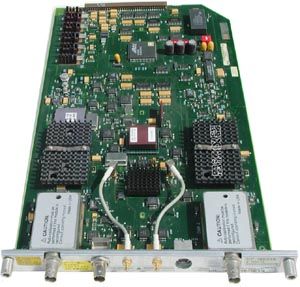

数字示波器模块 HP16534A

Agilent 16534A模块把多功能、深内存、数字示波器的优势集成到安捷伦逻辑分析系统中。

特性

• 支持多通道的独立式示波器
• 在八个模拟通道的每条通道上同时捕获最多32K样点 (单一时基)
• 利用额外的示波器模块测量低速和快速事件，创建多时基数字示波器
• 对多通道测量，可以在一个系统中配置最多20个示波器通道
• 把示波器与其它逻辑分析模块结合在一起
• 可以从逻辑分析系统任何模块中准备或触发示波器，捕获和显示影响数字系统的模拟事件
• 自动定标、自动测量、电压和时间标尺及颜色等功能节省您的时间
• 选择自动定标，示波器将立即调节时间、电压和触发电平，稳定地显示波形

2GSa/s 2-Ch 500MHz BW Digitize Oscilloscope Module

The Agilent HP 16534A is a used 8 Channel, Digitizing Oscilloscope Module that offers the advantages of a full-featured, deep memory, digitizing oscilloscope integrated into your Agilent logic analysis system.

• Use as a Standalone Scope with Many Channels.
• Capture up to 32K on each of eight analog channels simultaneously (single time base).
• Measure slow and fast events with additional oscilloscope modules to create a multiple time base digitizing oscilloscope.
• For large channel count measurements, configure as many as 20 scope channels in a single system.
• Combine Scope with Other Logic Analysis Modules.
• You can arm or trigger the oscilloscope from any module in the logic analysis system to capture and display the analog events that affect your digital system.
• Save Time with Autoscale, Auto-Measure, Voltage and Time Markers, and Colors.
• Select autoscale and the scope adjusts the time, voltage and trigger levels instantly for a stable display of your waveforms.
