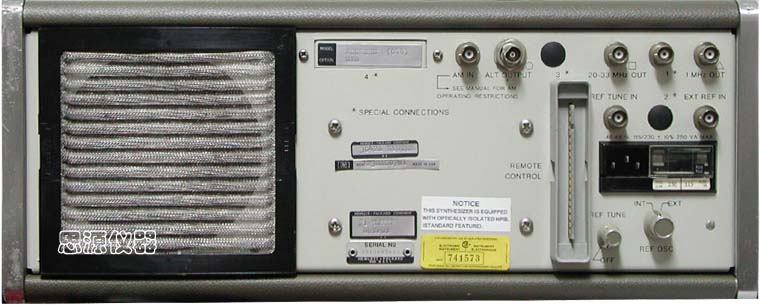

后面板

数字合成信号源 HP3330B

厂商: 美国惠普

详细指标 pdf文档

The 3330B Frequency Synthesizer has made an impact throughout the industry with its capability to digitally sweep frequency and amplitude.

▪ ±1x10-8 /day frequency stability
▪ -50 dB signal to phase noise with a constant resolution of 0.1 Hz to 13 MHz
▪ +13.44 dBm to -86.55 dBm into 50 Ω amplitude range
▪ 0.01 dB of resolution
▪ Harmonic distortion, with full output amplitude: -60 dB (5 Hz to 100 kHz), -50 dB (100 kHz to 1 MHz), and -40 dB (1 MHz to 13 MHz)
▪ 100 mV rms/50 Ω tracking output (20 to 33 MHz )
▪ 1 MHz reference output 220 mV rms/50 Ω (0 dBm/50 Ω)
▪ Step size is continuously adjustable in 0.1 Hz increments
▪ Number of steps: 10, 100, or 1000
▪ Time per step: 1, 3, 10, 30,100, 300, 1000, and 3000 mS
▪ Sweeps up, down, or both
