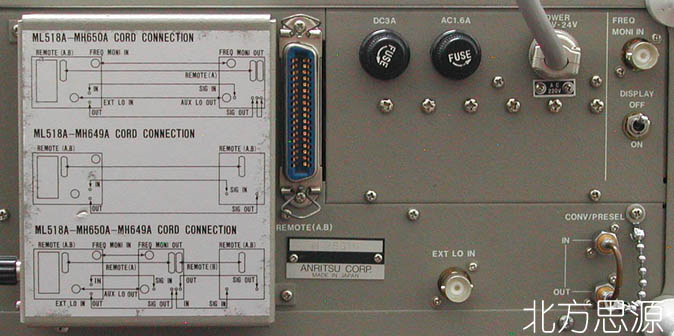

后面板Interference/Field Strength Meter
厂家: 日本安立
· 频率范围 25 - 520MHz
· 可以1kHz的精度调整频率
·
记录仪输出的快速响应，允许对极限场变量进行可靠的记录
· 干涉波的CISPR一致性测试的有效测试手段
· 电平测试灵敏度(EMF) : 0dBμv(25-222MHz) ; 5dBμv(222-520MHz)
· 场强测试范围 : -10~130dBμv/m
· 分辨带宽 : 15KHz,120KHz,200KHz
· 天线另配
ML518A 可配合 MH650A Frequency Converter 与 MH649A Preselector 使用
The ML518A is a universal multi-purpose field strength meter with many functions
and excellent performance in the frequency range from 25 to 1700 MHz. It can be
used for investigating the service area of broadcast waves, radio transmission
tests, measurement of spurious emissions of transmitters, measurement of antenna
characteristics, and for measuring interference waves in conformity with the
CISPR specifications.
- A desired frequency can be precisely captured because a tuning frequency can
be set up to 1700 MHz with an accuracy of 1 kHz.
- Quick response of the recorder output permits faithful recording of extreme
field variations.
- Efficient measurement of interference waves in conformity with the CISPR
specifications.
- The average value, quasi-peak value, and peak value detection modes allow
measurement of radio signals (TV, noise, etc.) which cannot be evaluated by the
average value alone.
