数字存储示波器 TEK SC503/PG502/DC503A

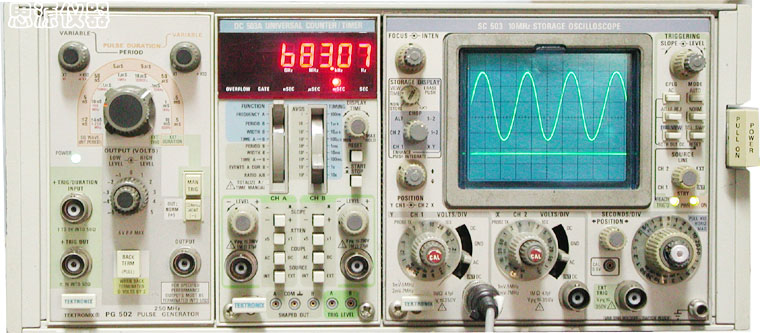

The SC503 Storage Oscilloscope Module provides a 10MHz bandwidth, bistable storage auto-erase, variable enhancement and integration to increase writing speed, trigger view, variable holdoff, switchable front/rear X and Y inputs, rear Z axis input and full X-Y capability. 详细指标 pdf文档

The PG502 Pulse Generator features fast rise and fall times, independent top and bottom pulse levels, and adjustable pulse duration. 10Hz to 250MHz, risetime of 1 ns, output of 1-5V.

Tektronix, PG 502, 250 MHz Pulse Generator Plug-In. The PG 502 is a popular, versatile and dependable pulse generator manufactured by Tektronix. Range is 250 MHz-10Hz, pulse period is 4 ns-100 ms, duration 2 ns-5 ms, duty factor 50%, transition time fixed 1 ns.

The DC 503A offers a broad range of measurement features. The instrument has two input channels, A and B, each with 125 MHz capability. Each channel has separate triggering level, triggering slope, attenuator, and coupling mode controls. Eight measurement functions are available with the DC503A, and an averaging feature allows averaging of 1 to 10 occurrence of the signal of interest. Signals to be counted or timed can be applied to channels A and B via the front panel BNC connector or through the rear interface connection. The DC503A features an easy to access front panel and an LSI-based design for increased instrument reliability.

The DC 503A is equipped with a temperature controlled 10 MHz oscillator to obtain a highly stable and precise internal time base.

FEATURES:

125 MHz Both A and B Channels
10-ps Resolution In Time-Interval Average Mode
Measurement Functions include:
Frequency; Period and Period
Average; Width and Width Average;
Time A-B; Time A-B Average;
Events A During B and Events A
During B Average; Totalize; Time
Manual; Ratio A/B Average
40-MHZ Rep Rate in Time-interval Average
Trigger-Level Outputs for Accurate Trigger Setting
Simplified Width Measurements
Trigger-Level Outputs for Accurate trigger Setting
Shaped Outputs for Ease of triggering
Designed for true Probe Compatibility

The DC 503A offers a broad range of measurement features. The instrument has two input channels~ A and B, each with 125-MHz capability. Each channel has separate triggering level, triggering slope, attenuator, and coupling mode controls. Eight measurement functions are available with the DC 503A, and an averaging feature allows averaging of 1 to 10 occurrences of the signal of interest. Signals to be counted or timed can be applied to channels A and B via front-panel BNC connectors or through rear-interface connections. The DC 503A features an easy-access front panel and an LSI-based design for increased instrument reliability.

You are bidding on a Tektronix DC 503A Universal Counter/Timer. The DC 503A is a Frequency counter, range to 100 MHz, 7-digit display, 300mVPP input sensitivity.

THE DC503A IS A 125MHZ COUNTER WITH ALL OF THE BELLS AND WHISTLES, A/B CHANNEL, 8 DIGIT RESOLUTION THIS HAS THE HIGH STABILITY TIME BASE (OPTION 1)
