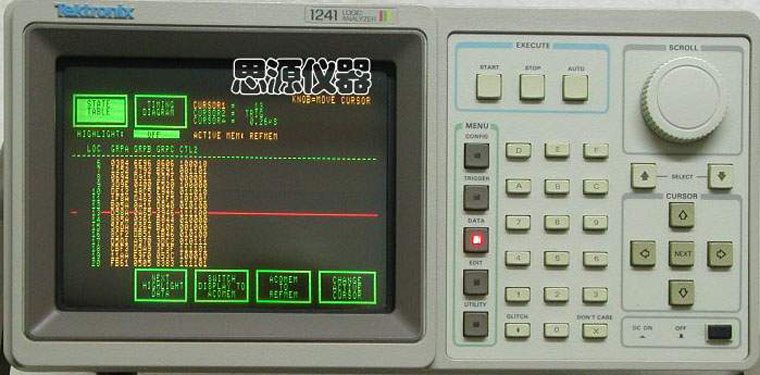

泰克逻辑分析仪 TEK1241

TEK1241

厂家: 美国泰克
尺寸: 32×15×40cm
重量: 约15Kg

100MHz/72通道(彩色触摸屏)

性能指标

The 1241 Logic Analyzer provides up to 72 acquisition channels; Acquisition speeds up to 100 MHz asynchronous, 50 MHz sync; 14 levels of triggering with conditional branching.Color Touch Screen.
The 1241 Logic Analyzer is a portable color logic analyzer that offers up to 36 channels of hardware analysis and 72 channels of software analysis with acquisition speed to 50MHz synchronous and 100MHz asynchronous. With 14 levels of triggering and a dual hardware/software time base, integration is expedited. Fast friendly operation is assured with more than 50 soft keys (touch screen) for on screen menus and four operation levels. A nonvolatile storage memory stores two complete instrument setups. Utilizes various ROM packs, RAM packs and COMM packs (sold separately) for tailoring software control and acquiring data and control of communication interfaces such as RS-232 and IEEE-488.
