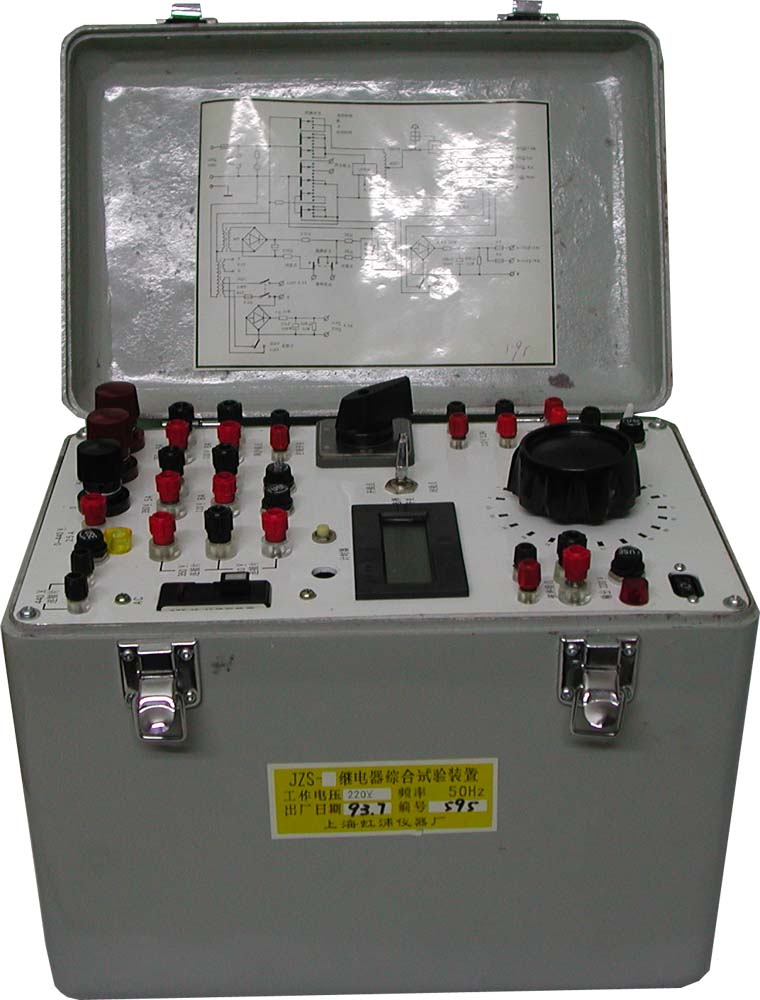

继电器综合试验装置可作为保护继电器通用测试仪器，适用于电流、电压、时间、中间等继电器与跳合闸试验，具有坚固耐用，尺寸小、重量轻、功能全，便于携带等特点。但使用时尚需细心谨慎，以免损坏。

详细介绍

• 主机 E1301B B-Size VXI Mainframe, 9-Slot
• 模块
  • E1326B 5.5 Digit Multimeter, B-Size
  • E1345A 16-Channel Low-Offset Relay Multiplexer
  • E1330B Quad 8-Bit Digital Input/Output
• 详细介绍

• 50MHz - 1000MHz
• 性能指标pdf

• Supervisor is a display optimizer. It takes a standard video input and transforms it into a signal which makes a multi-sync display give its best possible performance. Supervisor is not a simple line-doubler. It works by either increasing the number of lines in the input image to make the scanning structure invisible, or increasing the image display rate to eliminate flicker, or a combination of both to achieve optimum output. It also enables SVGA images to be seamlessly mixed with video and displayed simultaneously. Alternatively it allows switching between the two without the 'glitch' conventionally associated with this process.

C6M-II-C 调制器（47-1000M捷变），这款前端设备功能是将模拟音频及视频信号调制成射频信号。

名称: 匝数测试仪
型号: TH200/TH201/TH200R/TH201R
产地: 江苏

详细介绍

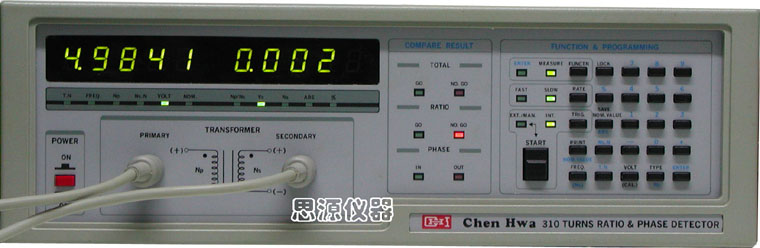

名称: 匝数测试仪 Turn Ratio & Phase Detector
型号: 310
厂家: Chen Hwa

主要测试变压器的圈数比及相位。测试电压0.1V-10V任意设定。
内部频率5种选择(1.00kHz,15.75kHz,22.0kHz,50.0kHz)。
比较器设定范围(百分比0.1%-99.9%; 绝对值0-999.99圈)。
测试范围(最大1:100)
详细参数pdf

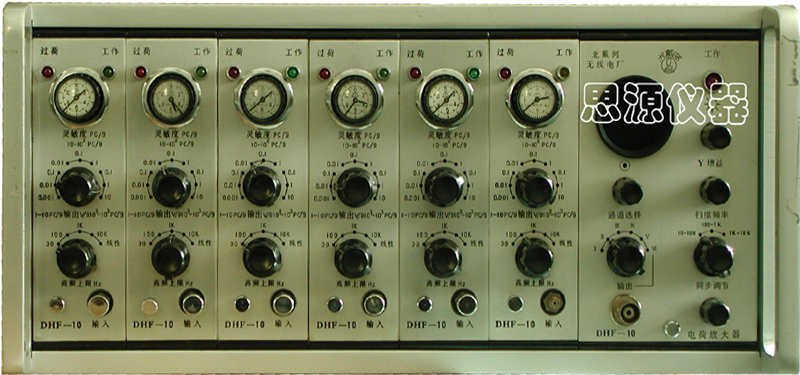

电荷放大器通过配接压电加速度传感器或压电力传感器等，可对振动信号的加速度、速度、位移、拉压力、冲击压力、冲击加速度等物理量进行测量。详细介绍

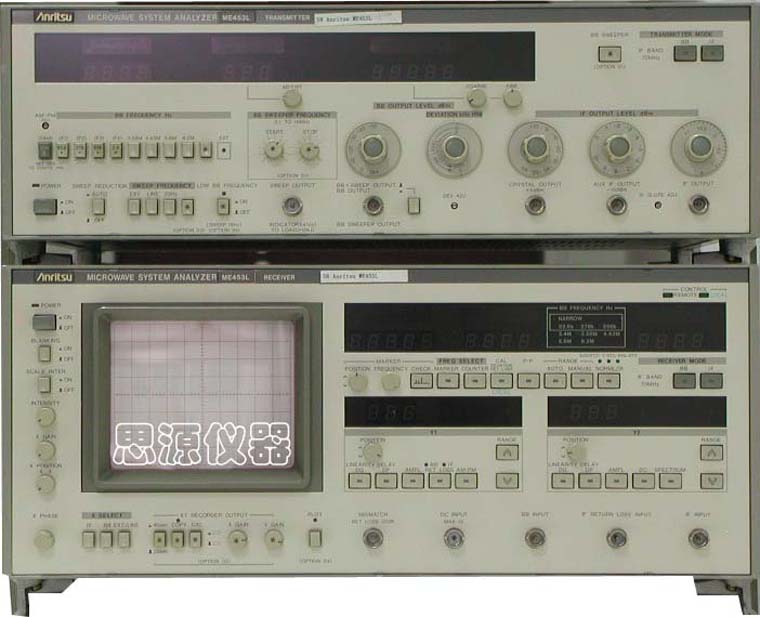

• Group delay 特性
• 调制器与解调器的线形和灵敏度
• Differential gain 特性
• Differential phase 特性
• IF and BB band amplitude response
• IF and BB band return loss
• Frequency deviation(or specturm)
• AM/PM conversion coefficient
• DC characteristics
• IF/BB band power,gain,loss
• IF band 频率

详细介绍

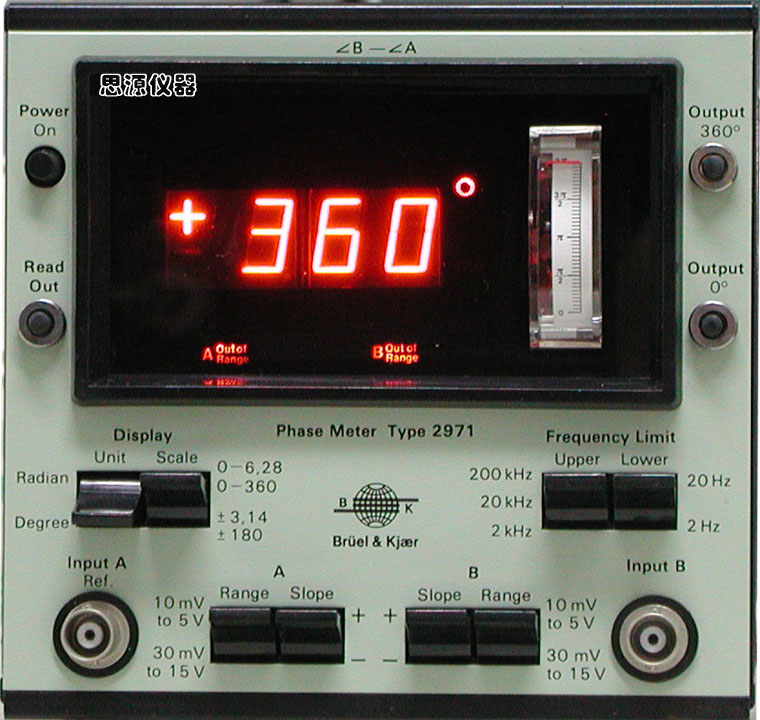

• 电平输入[reference(A)and(B)]: 10 mV - 15 Vrms (正负极性可选)
• 频率范围: 2 Hz - 200 kHz
• 详细介绍

20倍

厂家: 3M

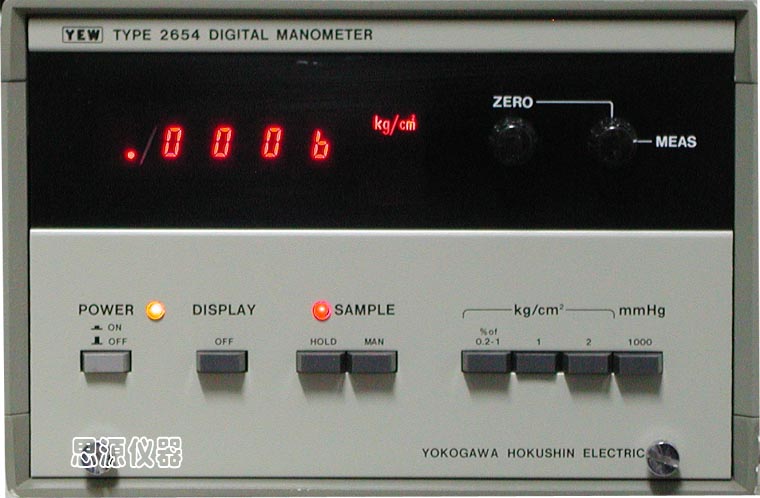

名称: 数字压力计 DIGITAL MANOMETER
型号: YOKOGAWA 2654
0.2-1Kg/cm², 1Kg/cm², 2Kg/cm², 1000mmHg

接口照片

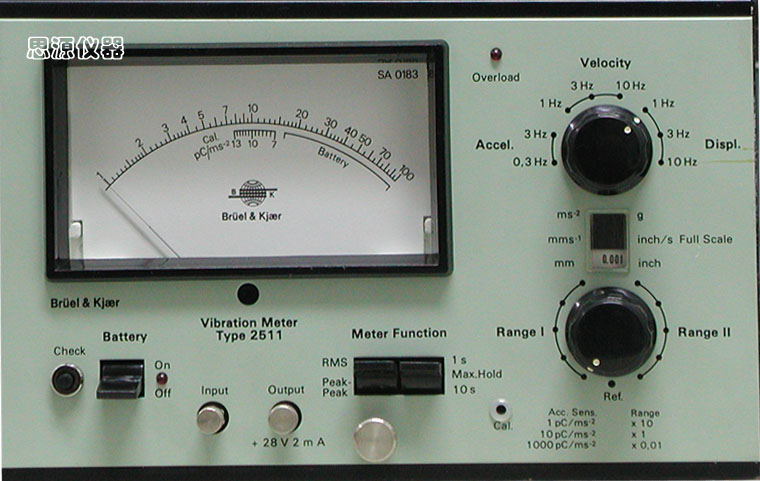

• Battery operated meter with charge amplifier input, for measuring acceleration, velocity and displacement in both Imperial & Metric units - RMS and TRUE PEAK-PEAK meter.

  Ideal, for use, as a front-end, signal conditioning unit into FFT or other analysers, DAT recorders etc. It also includes a 160 Hz reference signal to calibrate complete measurement systems.
